Sectionalizing Panel 11kV to 33kV
Electrical Sectionalizing Panel Manufacturer

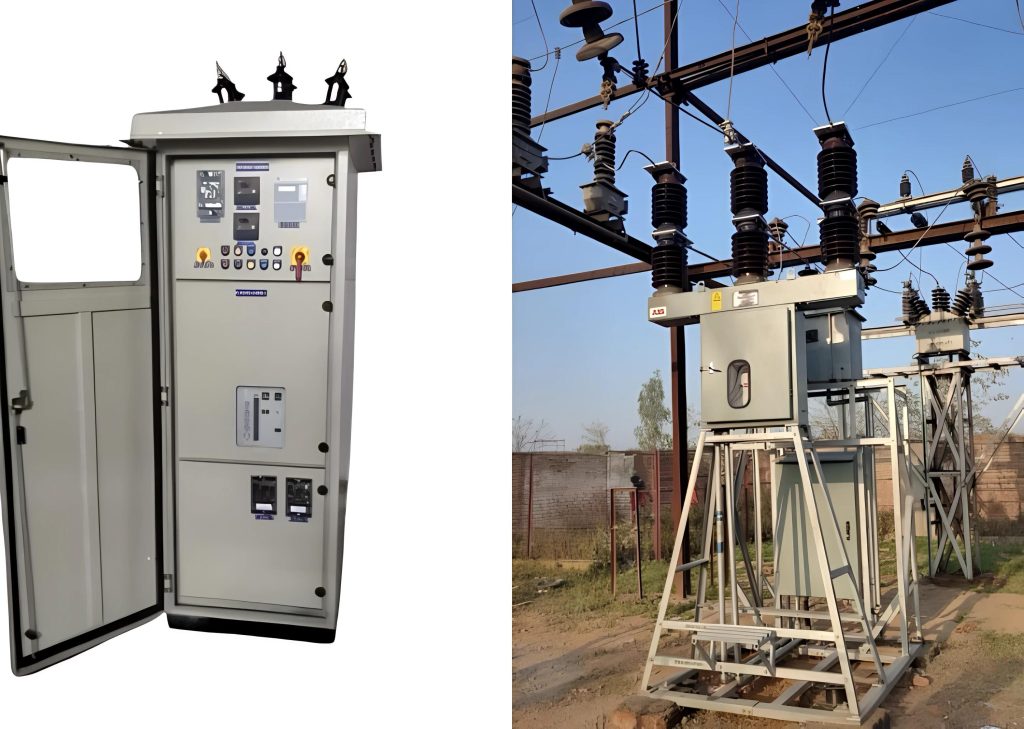

A Sectionalizing Panel is a critical component in medium voltage power distribution, designed to control, isolate, and protect individual feeders within an electrical network. At Simartech, a trusted Sectionalizing Panel manufacturer based in Chandigarh, we engineer robust solutions for 11kV to 33kV applications. Each electrical Sectionalizing Switchgear Panel ensures uninterrupted power supply by allowing operators to switch ON/OFF specific sections without shutting down the entire system.
Our panels are built with high-grade copper busbars and aluminum busbars, vacuum circuit breakers (VCB) or SF6 breakers, and proper cable termination arrangements for safe operation. Whether you need an indoor or outdoor type, our design complies with IS and IEC standards.
The price of this item shall be derived through proper design and detailed engineering. The item is manufactured on customised design.
Specifications of Sectionalizing Panels
| Purpose | Feeders of Transformer Switching/Control and Protection |
| Voltage | 11KV to 33kV |
| STR | As Per Transformer of Client's Requirements |
| Current Rating | Up to 2500A |
| Breaker Type | Vaccum (fixed type) |
| Reference Standard | IS/IEC 62271 - 100 |
| Maximum Transporting Length | Standard |
| Ingress Protection (IP) | 55 |
| Busbar Material | Aluminium or Copper (as Per Client's Requirements) |
| Cublicle Enclosure Material | CRCA/Aluzinc GP Sheets |
| Sheet Thickness | 2.5 mm |
| Painting | Powder Coating Thickness between 60-80 microns |
| Indications/Annunciations | For status of the panel like ON, OFF or TRIP |
| Auxiliary Supply | DC 24 to 220V and AC 110V to 415V as per requirement of the customer |

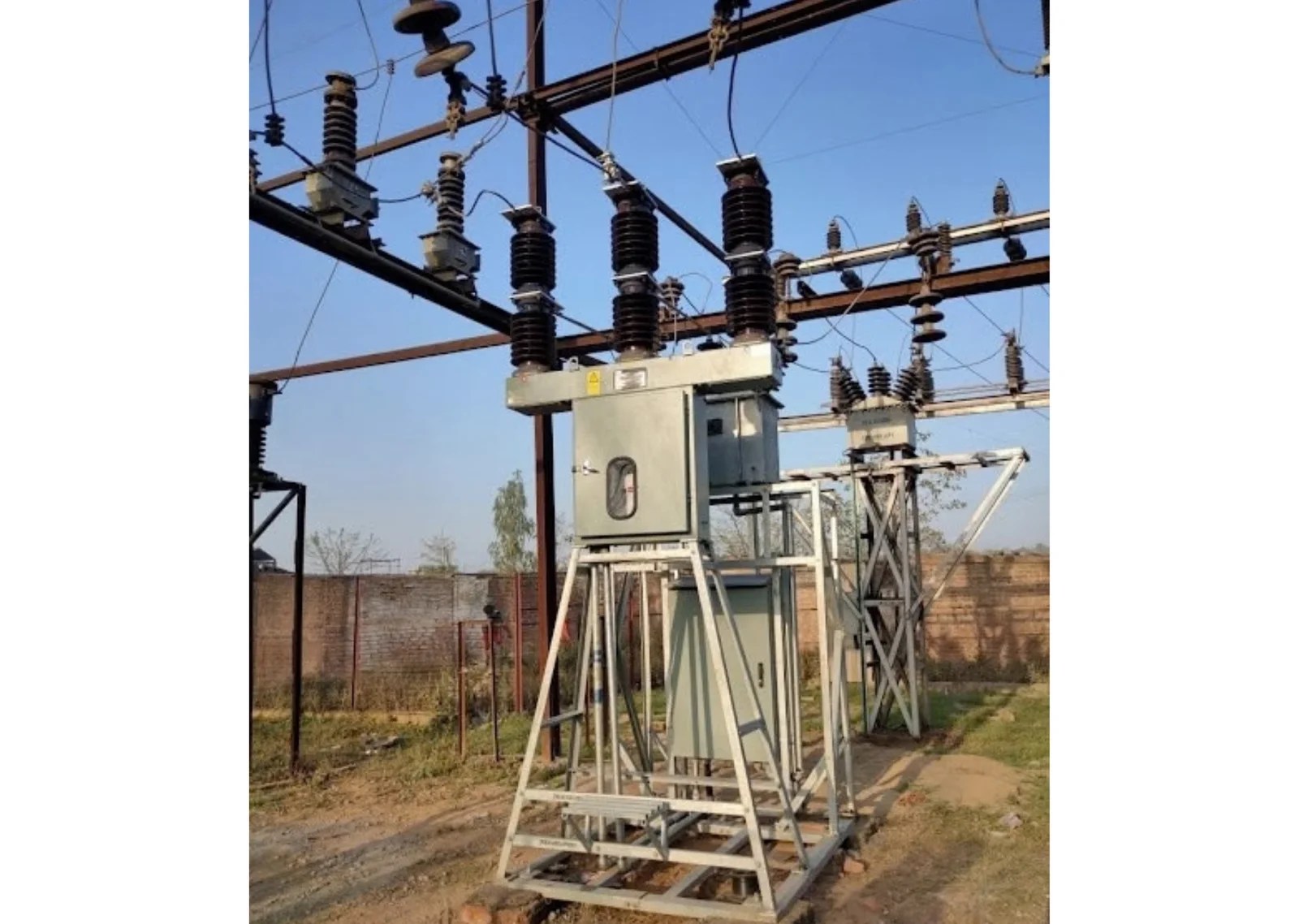

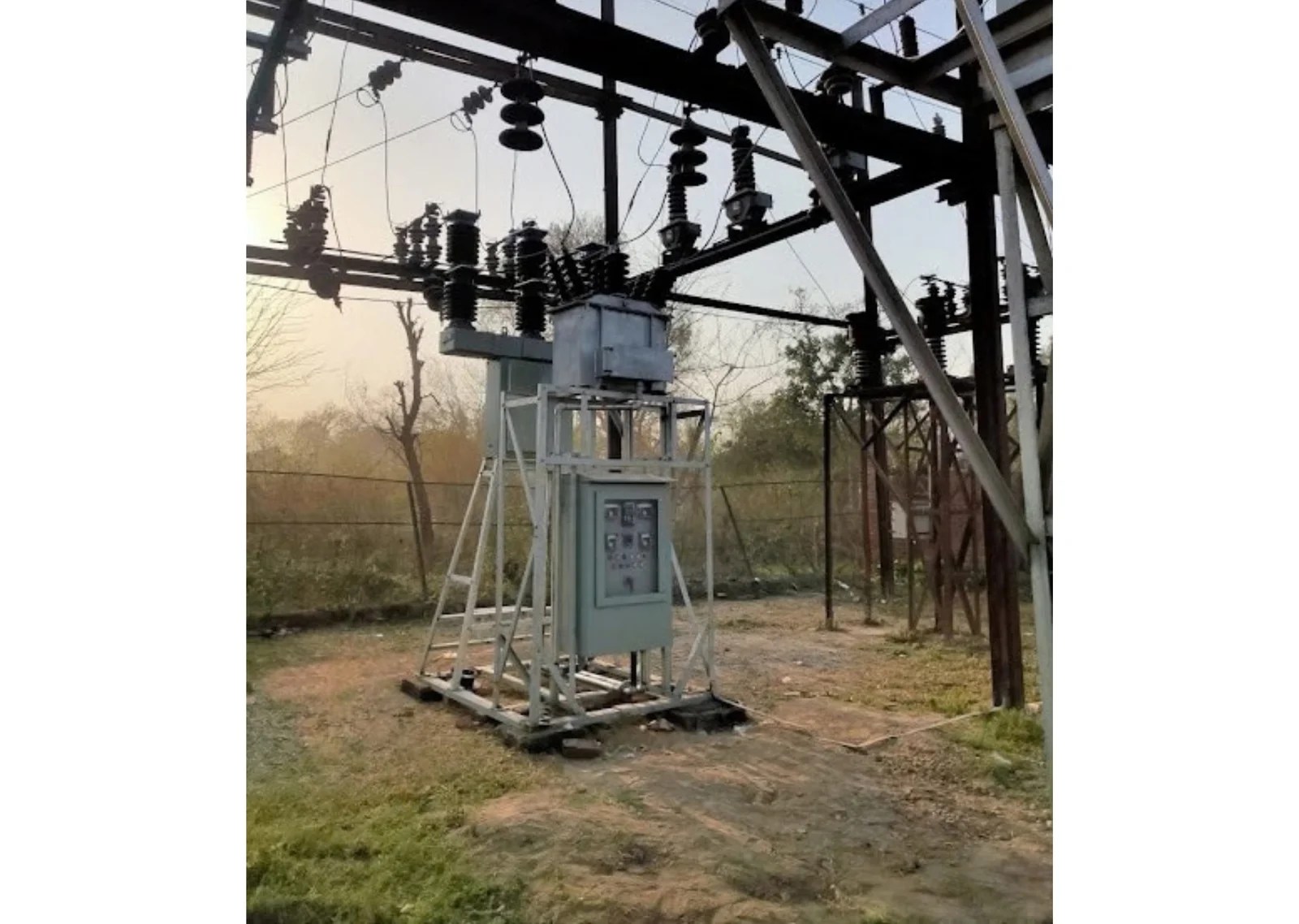

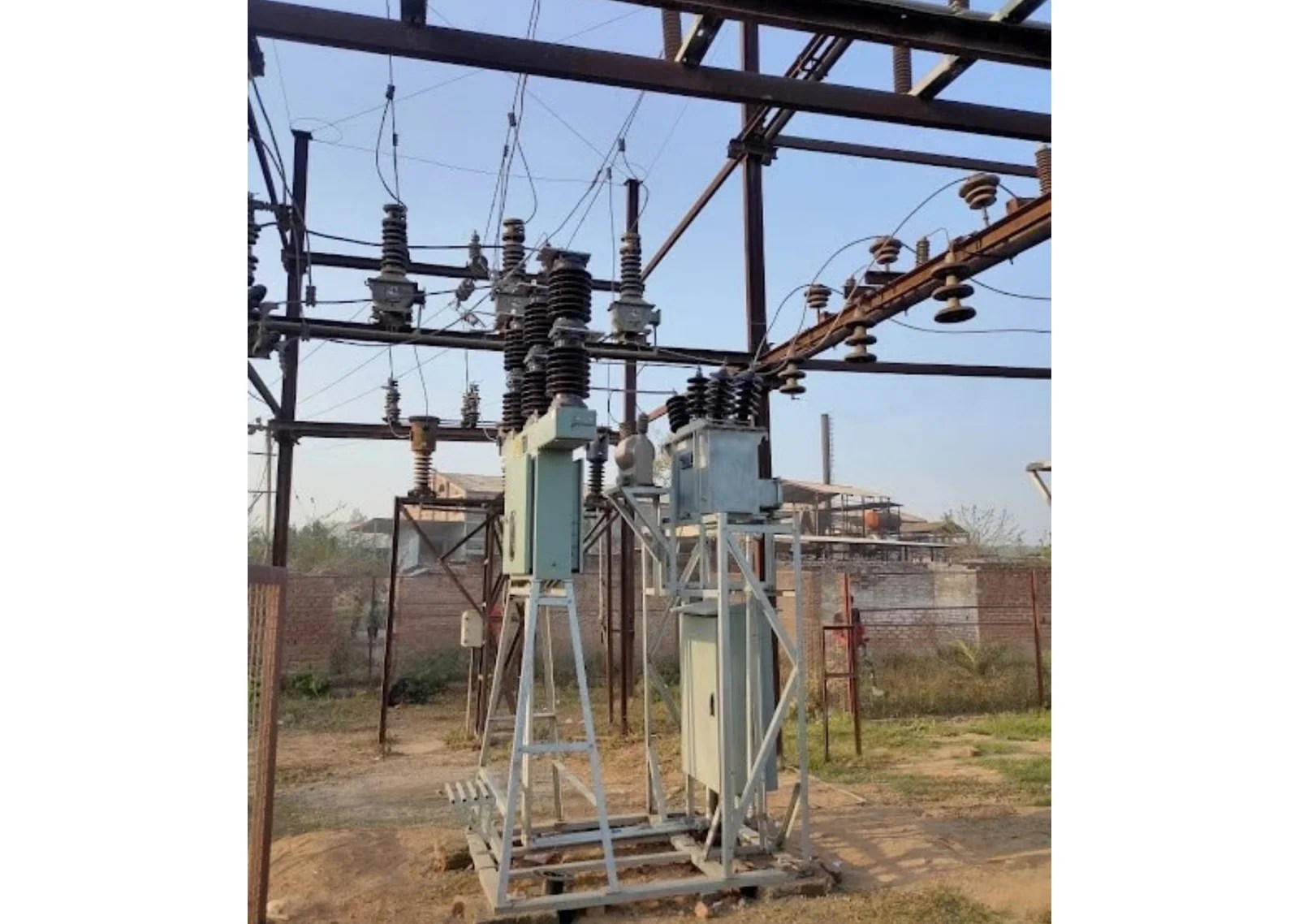

| Main Power Connection Terminals | Cable entry from Bottom or Top Bushing for connecting directly to overhead lines with ACSR Conductors |
Types of Sectionalizing Panels We Manufacture
1. Bus Sectionalizing Panel
A Bus Sectionalizing Panel is used to divide a single busbar into two or more sections with the help of a circuit breaker and isolators. This arrangement provides flexibility in maintenance and improves system reliability. If a fault occurs in one section, the Bus Sectionalizing Switchgear Panel isolates it, while the other section continues to operate. It is ideal for large industrial plants, substations, and power houses where continuous power is critical.
2. Feeder Sectionalizing Panel
A Feeder Sectionalizing Panel is designed to control and protect multiple outgoing feeders from a single incomer. The size and rating of the Feede Sectionalizing Switchgear Panel depends on the number of load feeders. Each feeder in the Feeder Sectionalizing Switchgear Panel is equipped with independent protection, metering, and switching, making it easy to manage individual loads. Our electrical Sectionalizing Switchgear Panel range in this category is widely used in distribution substations and commercial complexes.
Why Choose Simartech as Your Sectionalizing Switchgear Panel Manufacturer?
Choosing the right Sectionalizing Switchgear Panel manufacturer determines your plant’s safety and uptime. Simartech is an established electrical Sectionalizing Switchgear Panel manufacturer in India with:
- Custom Engineering: Every Sectionalizing Switchgear Panel is designed as per your SLD and number of feeders.
- Quality Components: We use L&T, Siemens, Schneider, ABB switchgear inside every Bus Sectionalizing Switchgear Panel and Feeder Sectionalizing Switchgear Panel.
- Type Tested Design: Safe clearance, proper cable alleys, and powder-coated enclosures.
- Pan India Support: Manufacturing in Chandigarh with supply across India for 11kV to 33kV projects.
If you are searching for a reliable Sectionalizing Panel manufacturer for utility or industrial projects, our team provides turnkey support from design to commissioning
Applications of Our Sectionalizing Panel
Our electrical Sectionalizing Switchgear Panel is used in:
- Power distribution substations
- Steel, cement, and textile industries
- Solar and wind power plants
- Commercial buildings and hospitals
- For both Bus Sectionalizing Switchgear Panel and Feeder Sectionalizing Switchgear Panel operations
