BUSBAR TRUNKING SYSTEM

Simartech is a leading busbar system manufacturer in Mohali, Punjab, specializing in durable and safe 415V to 11kV busbar systems for industrial power distribution. Our bus duct systems provide seamless power connection between transformer or DG set and PCC panel to sub panels, handling up to 6300A with Aluminium or Copper busbars. Designed as per IS/IEC 60439 & IS 5082, with IP 52 to IP 55 protection, powder coated CRCA enclosure and flexible busbar links to prevent vibration transmission. Trusted by industries across India

The price of this item shall be derived through proper design and detailed engineering. The item is manufactured on customised design.

Request A Quote

Key Features:

Up to 6300A Current Rating for heavy industrial loads
Copper & Aluminium Busbar Option as per client requirement
Anti-Vibration Flexible Links at transformer & panel ends
IP54 / IP55 Enclosure with Canopy for Outdoor Installation
Moisture Drain Plugs & Air Vents for heat dissipation
2.0mm CRCA/GP Sheet with 60-80 micron powder coating
Custom STR & 2000mm transporting length for easy installation

Why Choose Our Medium Voltage Switchboards?

Factory in Mohali & Baddi. In-house fabrication, heat dissipation calculation, testing as per IS standard, 100+ installations across Punjab, Haryana and Himachal.

Applications of 415V to 11kV Busbar System:

Power distribution in manufacturing plants, data centers, hospitals
Transformer to PCC Panel connection
DG Set to Panel connection
Commercial buildings, Pharma, Steel Plants and other industrial fields.

Serving Areas:

We are the top Busbar Manufacturers in India to clients worldwide, trusted for reliable LT/HT switchgear solutions.

Manufacturing Plant: Baddi, Himachal Pradesh and Mohali, Punjab
PAN-India Supply: Delhi NCR, Chandigarh, Ludhiana, Baddi, Gurgaon, Noida, Jaipur, Ahmedabad, Mumbai, Bangalore and other states and Union territories
Export: Nepal, Bhutan, Bangladesh, UAE, Africa, Canada, Japan, USA, Australia and worldwide.

Busbar Trunking System Specifications

Purpose	Power Connection between Transformer or DG Set and PCC Panel to Sub Panels
Voltage	415V to 11kV
STR	As Per Client's Requirements
Current Rating	Up to 6300A
Reference Standard	IS/IEC 60439 & IS 5082
Maximum Transporting Length	2000 mm
Ingress Protection (IP)	52 to 55
Busbar Material	Aluminium or Copper (as Per Client's Requirements)
Busbar Insulation	Air Insulated
Cublicle Enclosure Material	CRCA/GP Sheets
Sheet Thickness	2.0 mm
Painting	Powder Coating Thickness between 60-80 microns
Enclosure	Made from sheets with proper supports as per STR, size of duct with heat dissipation calculations with air vents, moisture drain plugs, canopy for outdoor installation, duct mounting anti vibrating pads.
Flexible Busbar	To avoid transmitting of panel/busduct/transformer at the end connections flexible busbar links are provided

Explore Our Other Products

Power Distribution Board

We are a leading manufacturer and supplier of high-performance ACDB...

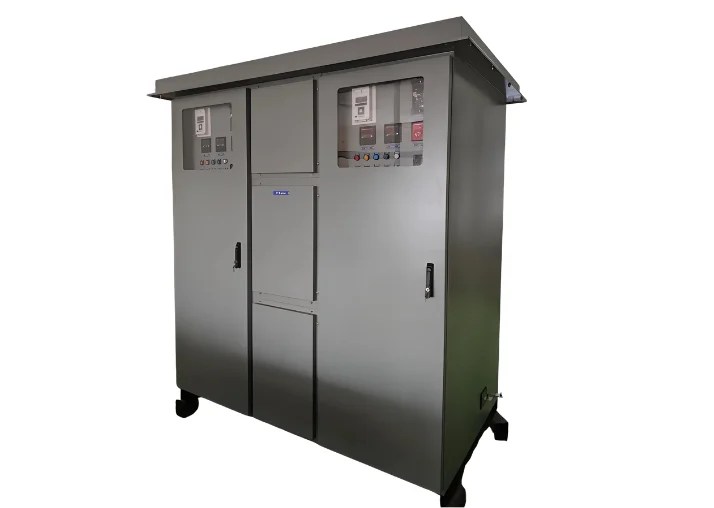

Kiosk Panel

Our Kiosk Panel is an outdoor Kiosk manufactured for any kind...

MCC PANEL

MCC Panel is required for the control and starting of the individual motors; the size...

What is a 415V to 11kV Busbar System?

A 415V to 11kV Busbar System is a prefabricated, enclosed power distribution system that uses solid Aluminium or Copper busbars housed in a protective metal enclosure to carry high current from 415V Low Tension (LT) up to 11kV Medium Tension (HT).

What is the voltage range of Simartech busbar system?

Simartech busbar system operates from 415V LT to 11kV HT AC, suitable for both low and medium voltage power distribution.

What is the price of busbar system per meter?

Price depends on: Current rating (A), Material (Copper/Aluminium), IP rating and length. For example, 1000A Aluminium IP54 bus duct starts around INR 12,000 per meter, while 2500A Copper IP55 can be INR 35,000+ per meter. Contact Simartech Mohali for exact quote in 24 hours.

Is busbar trunking system better than cable for 11kV?

Yes for high current. Above 630A, cables need multiple parallel runs, huge cable trays and more maintenance. Bus duct has lower voltage drop (<2%), better heat dissipation, compact design, 100% reusable and is safer as per IS/IEC 60439.

Which is the best busbar trunking system manufacturer in India?

Yes. The11kV VCB panels of The best manufacturer is one who offers IS/IEC 60439 certified, type-tested bus duct up to 6300A with IP54/IP55 protection, flexible links, and in-house design. Simartech is among the best for LT & HT busbar trunking systems with 2.0mm CRCA enclosure and powder coating.

Which is better - Copper / Aluminium busbar?

Copper has 60% higher conductivity, needs less cross-section, is more compact and lasts longer but costs 2.5x more. Aluminium is lightweight, cost-effective and ideal for 415V to 11kV systems up to 3200A. For 4000A+ and compact spaces, we recommend Copper. Simartech offers both.

What is the current rating of 415V to 11kV busbar?

The current rating is Up to 6300A, customizable as per Short Time Rating (STR) and client requirements.

What are flexible busbar links and why are they needed?

To avoid transmitting vibration from Transformer / DG Set / Busduct to the panel. Flexible links are made of laminated copper/aluminium foils provided at both end connections. Without them, vibration loosens joints and causes hot spots. All Simartech systems include them as standard.

Can busbar system be used outdoors?

Yes. Our outdoor type busbar comes with CRCA sheet enclosure 2.0mm thick, powder coating 60-80 microns, rain canopy on top, air vents with filters and moisture drain plugs. IP55 outdoor grade is ideal for transformer to panel connections outside.

What types of busbar systems do manufacturers in India offer?

Indian manufacturers offer: 1) Sandwich Type Busbar Trunking System 2) Air Insulated Bus Duct 3) 415V LT Busbar 4) 11kV HT Bus Duct 5) Isolated Phase Bus Duct (IPB) 6) Rising Mains. Simartech specializes in Air Insulated 415V to 11kV Busbar Systems up to 6300A.
