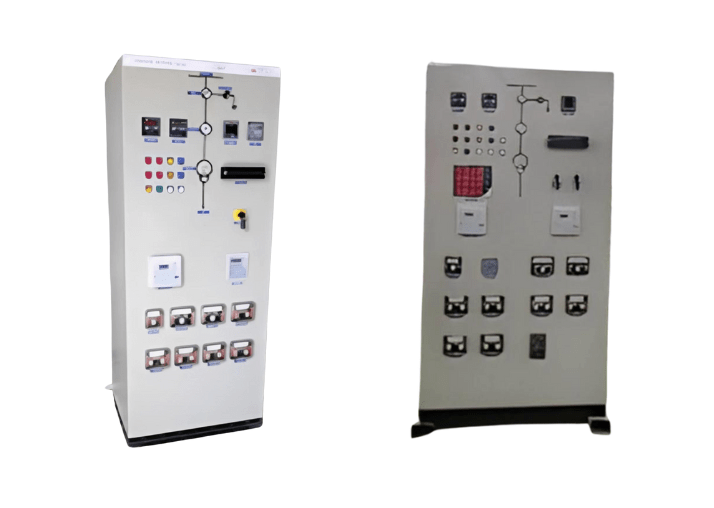

Control and Relay Panel (CRP/C&RP)
SIMARTECH Controls is a leading Control and Relay Panel manufacturer in India, based in Mohali, Punjab with 35+ years of expertise since 1989. We design and manufacture custom-built Control and Relay Panels for substations up to 400kV for Power Utilities, EHV Substations, Solar Plants, Steel Plants and Industries across PAN India. Our CRP panels are compliant with IEC 61850, IS 1248 & CBIP standards, compatible with all numerical relays (Siemens, ABB, Schneider) and SCADA systems.
The price of this item shall be derived through proper design and detailed engineering. The item is manufactured on customised design.
Why SIMARTECH is the Most Trusted CRP Panel Manufacturer in India?
- Since 1989: Formerly Chandigarh Electro Controls, 35+ years track record
- In-House Manufacturing: 3 Units – Mohali (E-278, Phase 8A, IT Park) & Baddi HP. Fabrication, powder coating, wiring & testing under one roof.
- Type Tested: CPRI tested designs, PGCIL / State Electricity Board Approved Vendor
- Custom Engineering: We work on your SLD, GA drawing & BOM – not off-the-shelf
- Pan India Service: Supply, Erection, Testing & Commissioning support across India
- ISO 9001:2015 Certified & A-Class Electrical Contractor
Control and Relay Panel Specifications
| Purpose | Feeders of Transformer Switching/Control and Protection |
| Voltage | 33kV, 66kV and 132kV |
| STR | As Per Transformer of Client's Requirements |
| Current Rating | Up to 1250A |
| Breaker Type | Vacuum (fixed type) |
| Reference Standard | IS/IEC 62271 - 200 |
| Maximum Transporting Length | 1000mm |
| Ingress Protection (IP) | 55 |
| Busbar Material | Aluminium or Copper (as Per Client's Requirements) |
| Busbar Insulation | Air Insulated |
| Cublicle Enclosure Material | CRCA/Aluzinc/GP Sheets |
| Sheet Thickness | Main body 2.0 mm and partitions 1.5mm |
| Painting | Powder Coating Thickness between 60-80 microns |
| Wiring | Copper flexible wires as per rating required with sleeved lugs, number ferules, phase color coding |
| Current Transformer | Resin Cast CT with rated primary and secondary as per relays and meters with required VA burden and class of protection and metering |
| Potential Transformer | Resin Cast PT with rated primary and secondary as per relays and meters with required VA burden and class of protection and metering |
| Protection Relays | As per requirement of the feeder/transformer including auxiliary relays |
| Metering | As per requirement of the feeder/transformer like Ampere, Voltage, TVM or equivalent parameters |
| Indications/Annunciations | For status of the panel like ON, OFF or TRIP |
| Auxiliary Supply | DC 24 to 220V and AC 110V to 415V as per requirement of the customer |
| Main Power Connection Terminals | Cable entry from Bottom or Top Bushing for connecting directly to overhead lines with ACSR Conductors |
Benefits of Control and Relay Panels
Complete Substation Protection: Protects your transformer, feeder, and bus from overcurrent, earth fault, short circuit, distance faults and differential faults. Prevents costly equipment damage.
Fast Fault Detection & Tripping: Integrated numerical relays from Siemens, ABB, Schneider trip the breaker in <40ms – minimizing outage time and saving your power transformer worth lakhs.
Centralized Control: Single panel to control ON/OFF, Tap Changer, Breaker status, and interlocking – no need to go to the switchyard.
Reduces Downtime by 70%: With fascia annunciation and fault recorder, your operator knows exactly which feeder tripped and why. Faster restoration.
Saves Space & Wiring Cost: Duplex design accommodates 2 feeders in one panel. Pre-wired, tested, and ready to install – cuts site wiring time by 50%.
Future Ready & Customizable: Built on your SLD. Any relay combination, any voltage 11kV to 400kV, simplex/duplex, with mimic. No standard model compulsion.
Ease of Maintenance: Front access, draw-out relay cases, 20% spare terminals and ferruled wiring makes troubleshooting and relay replacement easy.
Accurate Metering & Energy Auditing: Built-in digital meters, transducers and energy meters for precise load monitoring and energy audit.
Serving Areas
SIMARTECH Controls is headquartered in Mohali, Punjab and supplies CRP Panels across PAN India.
We are manufacturers with factories in Mohali and Baddi.
