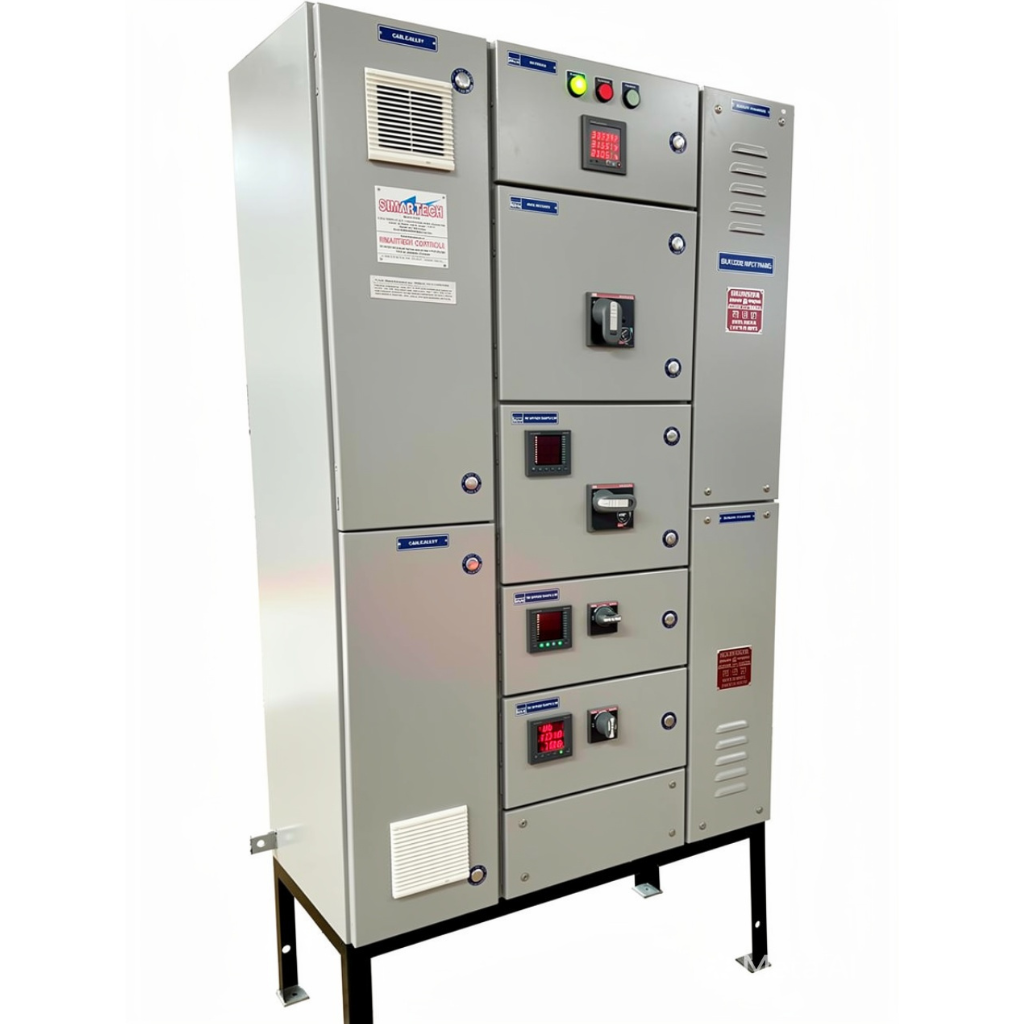

PDB Panel (Power Distribution Board) or
LDB Panel (Lightning Distribution Board)

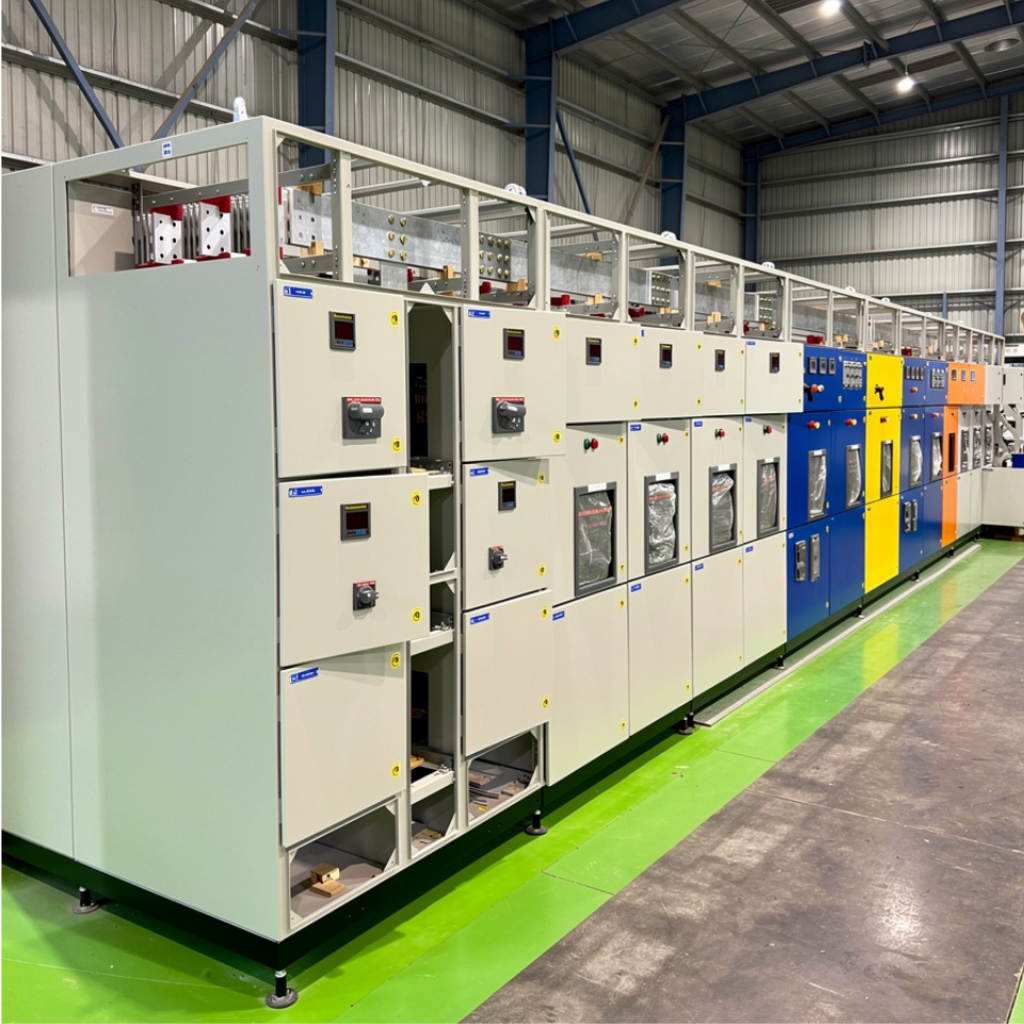

Simartech is a PDB Panel Manufacturer in India offering engineered and custom-built Power Distribution Boards for industrial, commercial, infrastructure, manufacturing and utility applications. Our PDB panels are designed to receive electrical power from an incoming source and distribute it safely to multiple outgoing feeders, equipment and electrical loads.
- IEC 61439 & IS 8623 Compliant: Type-tested design for maximum safety and performance
- Custom Built: LT & HT panels from 100A to 6300A, fully customizable busbar, feeder, and protection schemes
- Quality Components: Schneider, L&T, ABB, Siemens switchgear as per requirement
- Advanced Protection: MCCB, ACB, MPCB, ELR, surge protection, and smart metering options
- Robust Construction: CRCA sheet steel, powder coated, IP42/IP54/IP65 enclosure options
- Pan-India Delivery: Fast dispatch from our Mohali facility to Delhi NCR, Mumbai, Bangalore, Chennai, Hyderabad & more
PDB Panel Specifications
| Purpose of PDB (Power Distribution Board) or LDB (Lightning Distribution Board) | For use of distribution of power for small power socket outlets or lighting distribution of the area. |
| Voltage | 415V |
| STR | As per Transformer of Client's Requirement |
| Current Rating | Up to 400A |
| Reference Standard | IS/IEC 61439 |
| Maximum Transporting Length | 2000 mm |
| Ingress Protection (IP) | 52 to 55 |
| Busbar Material | Aluminium or Copper (as per client's requirement) |
| Busbar Insulation | Air Insulated |
| Cubicle / Enclosure Material | CRCA / Aluzinc / GP Sheets |
| Sheet Thickness | Main Body 2.0 mm and Partitions 1.5 mm |
| Painting | Powder Coating thickness between 60-80 microns |
| Wiring | Copper Flexible wires as per rating required with sleeved lugs, number ferules, phase colour coding |
As an experienced Power Distribution Panel manufacturer, Simartech provides panels configured according to the project’s electrical load, short-circuit requirements, protection scheme, feeder arrangement, installation environment and site requirements.
Our distribution panels can be engineered with ACBs, MCCBs, MCBs, SFUs, contactors, surge protection devices, metering, protection relays and other electrical components as required.
From electrical design and GA drawing approval to fabrication, wiring, testing, dispatch and installation support, Simartech provides complete power distribution solutions across India.
PDB Panel Manufacturer in India
Simartech designs and manufactures customized distribution panels according to project-specific electrical requirements.
Our engineering process considers the incoming supply, connected load, number of outgoing feeders, breaker ratings, fault level, busbar capacity, cable entry arrangement, enclosure requirements, IP protection and installation conditions.
As a PDB Panel Manufacturer, we can provide solutions with different configurations of incoming and outgoing feeders depending on the application.
Typical panel configurations can include:
- Single or multiple incoming feeders
- Multiple outgoing feeders
- ACB incomers
- MCCB incomers and outgoing feeders
- MCB outgoing circuits
- SFU/fuse-based protection
- Metering and monitoring
- Surge protection
- Earth leakage protection
- Control and indication systems
- Copper or aluminium busbars
- Cable alley and termination compartments
- Form-based internal separation as required
- Indoor or outdoor construction
- Wall-mounted or floor-mounted configurations

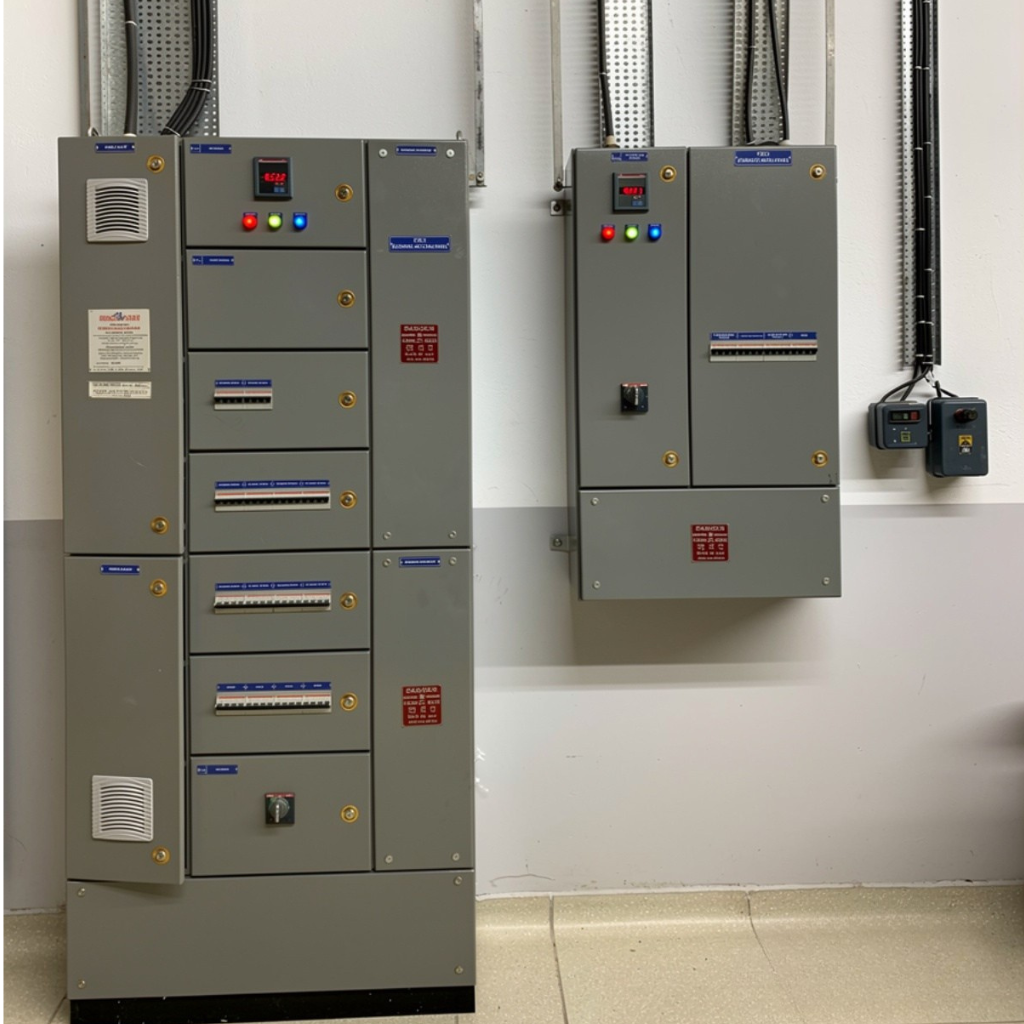

LDB Panel – Lighting Distribution Board
An LDB Panel, or Lighting Distribution Board, is used primarily for distributing electrical power to lighting circuits and small power loads.
LDB panels are commonly used in commercial buildings, factories, offices, hospitals, hotels, malls, residential developments and infrastructure facilities where electrical circuits need to be divided into multiple lighting or small-power feeders.
Depending on the project, an LDB can include MCBs, RCBOs/RCCBs, contactors, timers, surge protection, metering and other control or protection devices.
Difference Between PDB and LDB Panel
The main difference is their typical application.
A PDB Panel is generally designed for broader power distribution to equipment, machines, electrical systems and downstream panels.
An LDB Panel is primarily intended for lighting circuits and smaller electrical loads.
However, the exact configuration depends on the project’s electrical design, load schedule and consultant specifications.
Key Features of Simartech PDB Panels
Customized Engineering
Every project can have different load requirements, feeder quantities, fault levels and installation conditions. Simartech develops distribution panels around the project’s approved electrical drawings and specifications.
Robust Enclosure Construction
Panels can be fabricated using suitable sheet-steel enclosure configurations with appropriate surface treatment and powder coating for the intended environment.
Flexible Protection Options
The panel can be configured with ACBs, MCCBs, MCBs, SFUs, fuses, surge protection and other protection devices according to the required protection philosophy.
Copper or Aluminium Busbars
Busbar material and sizing can be selected based on current rating, temperature rise, short-circuit requirements and project specifications.
Metering & Monitoring
Electrical metering can be incorporated to monitor important parameters such as voltage, current, energy and power factor.
Indoor & Outdoor Options
Depending on the application, distribution panels can be manufactured for indoor installation or suitable outdoor environments with the required enclosure and ingress protection.
Why Choose Simartech as Your PDB Panel Manufacturer?
Simartech provides end-to-end electrical panel engineering and manufacturing support, from design through commissioning.
Engineering-Based Design
Our engineers review electrical requirements, load schedules, SLDs and feeder requirements before finalizing the panel configuration.
Project-Specific Manufacturing
PDB panels can be manufactured according to approved GA drawings, BOMs, electrical specifications and project requirements.
Quality Components
Switchgear and electrical components can be selected from reputed manufacturers such as Schneider Electric, Siemens, ABB, L&T and other approved brands according to client requirements and availability.
Testing Before Dispatch
Panels undergo applicable inspection and routine testing before dispatch according to the approved technical requirements.
Pan-India Supply
Simartech supplies electrical panels for projects across India and can provide engineering and installation support according to project requirements.
PDB Panel Supplier in India
Looking for a PDB Panel Supplier in India for an industrial, commercial or infrastructure project?
Simartech can support projects from initial technical discussions and electrical drawings through manufacturing, testing, delivery and installation support.
Our team can review your:
- Single Line Diagram (SLD)
- Load schedule
- Transformer rating
- Incoming supply
- Outgoing feeder requirements
- Breaker ratings
- Short-circuit level
- Panel dimensions
- Cable entry requirements
- IP protection requirements
- Metering requirements
- Project specifications
This allows the final distribution panel to be configured according to the actual application rather than using a generic standard configuration.
