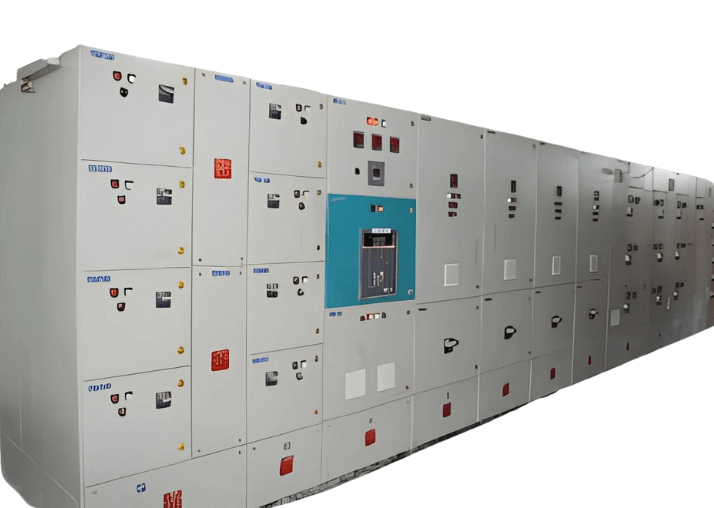

MCC Panel
(MOTOR CONTROL CENTER PANEL)
MCC Panel is required for the control and starting of the individual motors; the size of the panel depends on the number of motors and feeders. Bus bar & copper wiring are used for the interconnections of the switchgears.
Proper arrangement for incoming and outgoing cable terminations. Mostly these are indoor types, but for specific requirements, it can be an outdoor type.
The price of a MCC Panel shall be derived through proper design and detailed engineering. The item is manufactured on a customised design.
Specifications
| Purpose of MCC (Motor Control Centre) | For use of Plant Multiple Motors, having Incomer feeder and outgoing DOL/SD/VFD Starters as per Motor Ratings |
| Voltage | 415V AC |
| STR | As per Transformer of Client's Requirement |
| Current Rating | Upto 4000A |
| Reference Standard | IS/IEC 61439 |
| Maximum Transporting Length | 2000 mm |
| Ingress Protection (IP) | 52 to 55 |
| Busbar Material | Aluminium or Copper (as per client's requirement) |
| Busbar Insulation | Air Insulated |
| Cubicle / Enclosure Material | CRCA / Aluzinc / GP Sheets |
| Sheet Thickness | Main Body 2.0 mm and Partitions 1.5 mm |
| Painting | Powder Coating thickness between 60-80 microns |
| Wiring | Copper Flexible wires as per rating required with sleeved lugs, number ferules, phase colour coding |
